asdec life® photovoltaic solar module package - 2 / 9.84 KW
Wir akzeptieren:

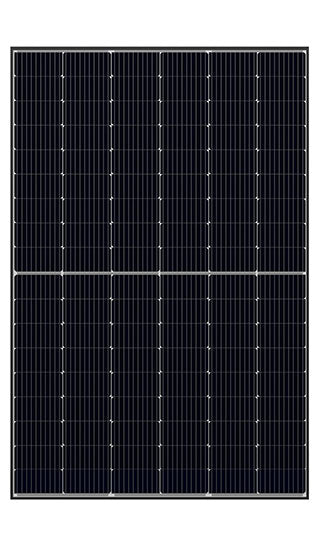

24 x ECO LINE HALF CELL M108/410W
LUXOR high-performance module
with 410 watts each = 9840 watts
Immediately available - daily price while stocks last !!
Further accessories, memory, inverter etc. available! Contact us !!
Including cable (approx. 120 cm) and MC4 connector system
Sturdy anodized black aluminum frame
Thermally toughened solar glass
High performance solar cell
Version with 10 busbars
Technical specifications :
Rated power Pmax (Wp): 410
Temperature coefficient Isc (%/K): 0.05
Number of cells lengthwise: 18
Cable length (cm): 120
Temperature coefficient Pmpp (%/K): -0.36
Cell width (mm): 182.00
Cell length (mm): 91.00
Rated Current Impp (A): 12.99
Rated voltage Umpp (V): 31.58
No-load voltage Uoc (V): 37.60
Short-circuit current Isc (A): 13.72
Temperature coefficient Uoc (%/K): -0.29
Maximum System Voltage (V): 1000
Cell type: monocrystalline
Number of cells across: 6
Frame Type: Standard
Connector type: MC4
Power Tolerance: 6.00
Weight : 21.5KG
