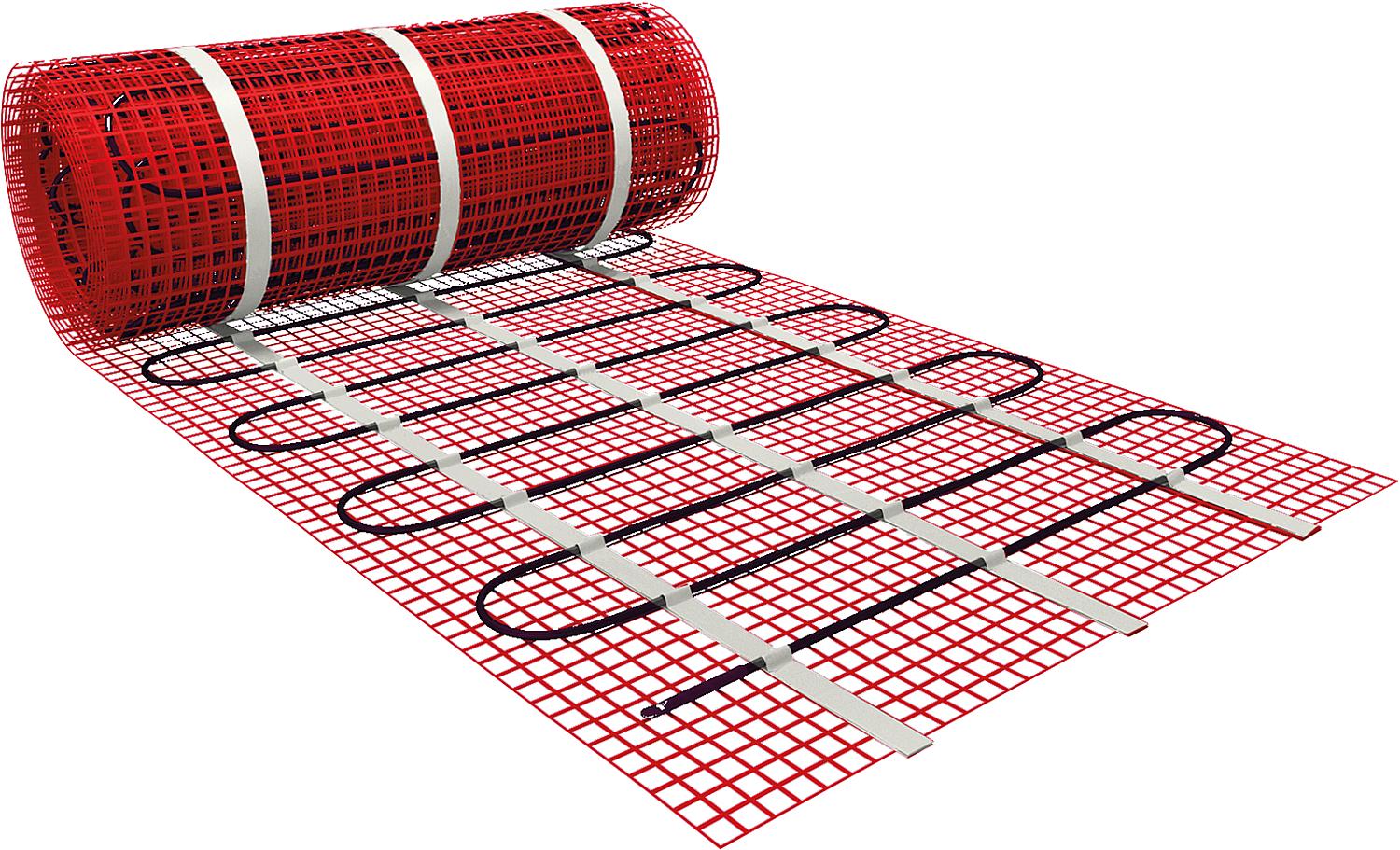

asdec life ® thin-bed heating mat for installation in tile adhesive, 7.0x0.5m= 3.5m², 525W

The system was developed to allow underfloor heating to be installed over an existing tiled floor or a floor covering that has already been installed. The mat is about 4 mm thin and can be integrated into the adhesive surface without dismantling or milling. The mat rests almost directly beneath the surface. This way the floor warms up faster, making the system ideal for rooms where a continuous occupancy rate is not required, such as bathrooms, hobby rooms, leisure activities, etc. The advanced thermostat takes into account the required warm-up time, so the floor is always exactly right when you need it temperature.

Technical specifications:
Electromagnetically compatible 2-conductor cable attached to the fiber optic network
2.5 m 3-wire supply cable
Completely encased in aluminum earthen mantle
Blind connection between heating and connection cable
Chrome/nickel resistance wire
PTFE (Teflon) insulation
PVC protective jacket
10-11 W per m resistance wire, 230 V
Cable ø: approx. 3 mm
Mat width: 500 mm
Fulfills the NEN standards for installations in all wet rooms
Scope of delivery:
- heating mat
- Empty tube for floor sensor
