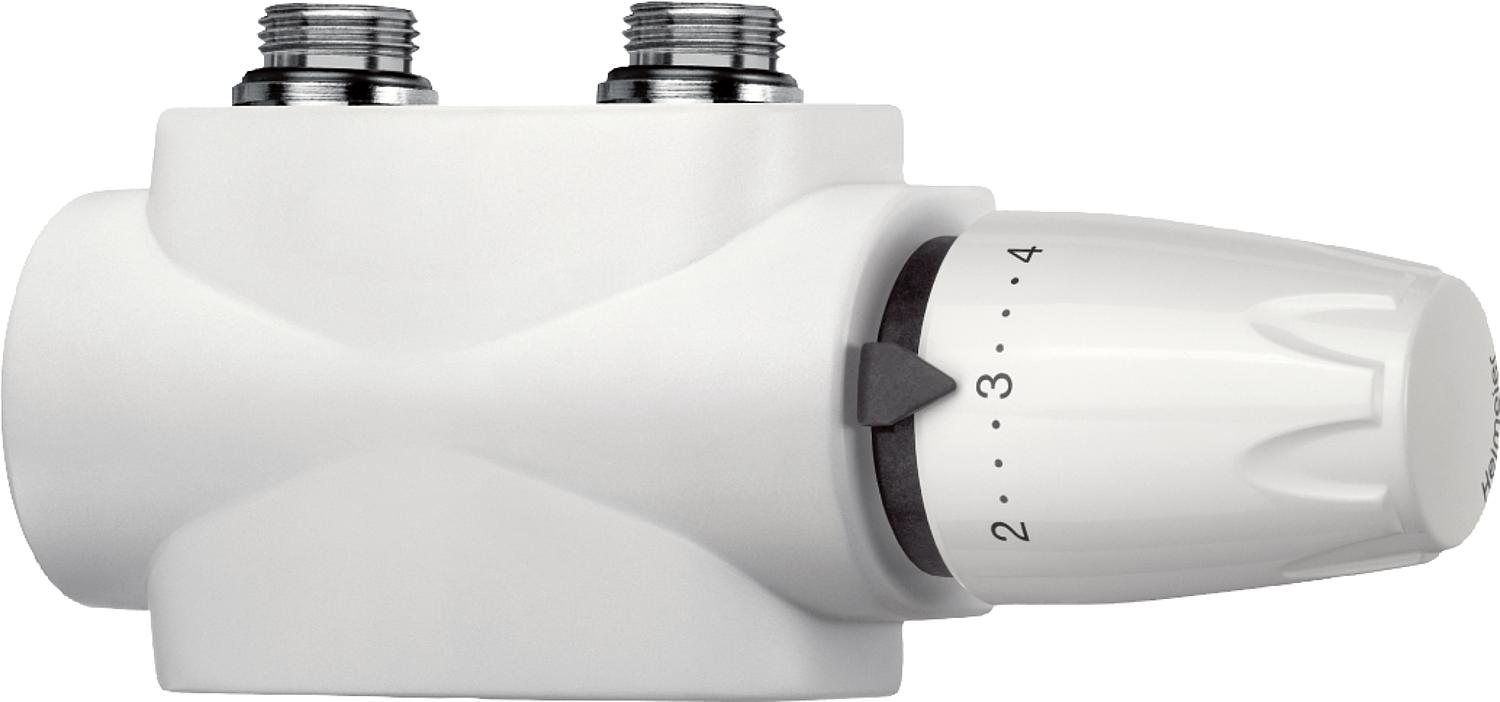

asdec life ® Heimeier Multilux 4-set two-pipe operation, 3/4", white RAL 9016
For radiators with a bottom two-point connection, such as bathroom radiators
Suitable for installation as a corner or passage form
The required flow of the individual radiators is set directly on the thermostatic valve body, which means that hydraulic balancing is done with a single turn
The thermostatic upper part and shut-off upper part can be exchanged, so the thermostatic head can be mounted on the left or right
Consisting of: Multilux 4 thermostatic valve body, radiator connections R 1/2" x G3/4", Design Line casing, thermostatic head Halo and sealing caps G3/4"
Technical specifications:
Material valve: gunmetal, corrosion-resistant
Maximum operating pressure: 10 bar
Maximum operating temperature: 120°C
Maximum operating temperature of the casing: 90°C
Center distance: 50mm
Connection Th head: M30x1.5
two-pipe operation
Thermostatic head: type DX
