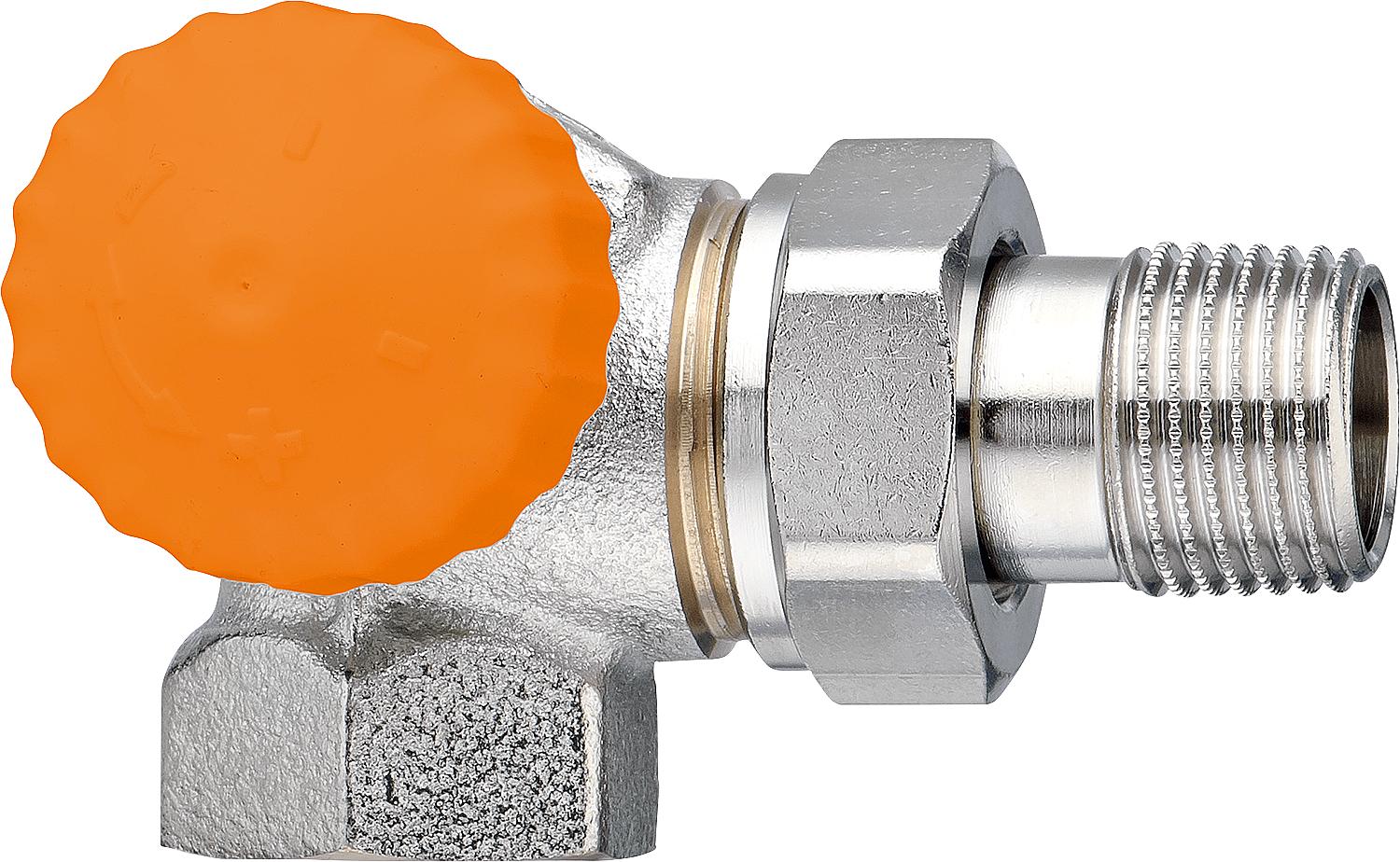

asdec life ® thermostatic valve body IMI Heimeier Eclipse DN10(3/8") angle corner left

For installation in heating and cooling systems. The complete upper part of the thermostat can be replaced with the Heimeier assembly device without draining the system.

Automatic hydraulic balancing through integrated flow controller, so the flow in the radiator is never exceeded even if the neighboring valves close
The required flow of the individual radiators is set directly on the thermostatic valve body
The flow can be infinitely adjusted within the flow range using the adjustment key, setting 1-15
Flow range from 10 to 150 l/h
Connection Th head: M30x1.5

Technical specifications:

Valve material: gunmetal, nickel-plated, corrosion-resistant
Material spindle: stainless steel spindle with double O-ring seal
Material O-ring: EPDM
Maximum operating pressure: 10 bar
Maximum operating temperature: 100 °C
Minimum operating temperature: -10°C
Differential pressure max.: 60 kPa
Differential pressure min.:
- 10-100 l/h = 10 kPa
- 100-150 l/h = 10 kPa
