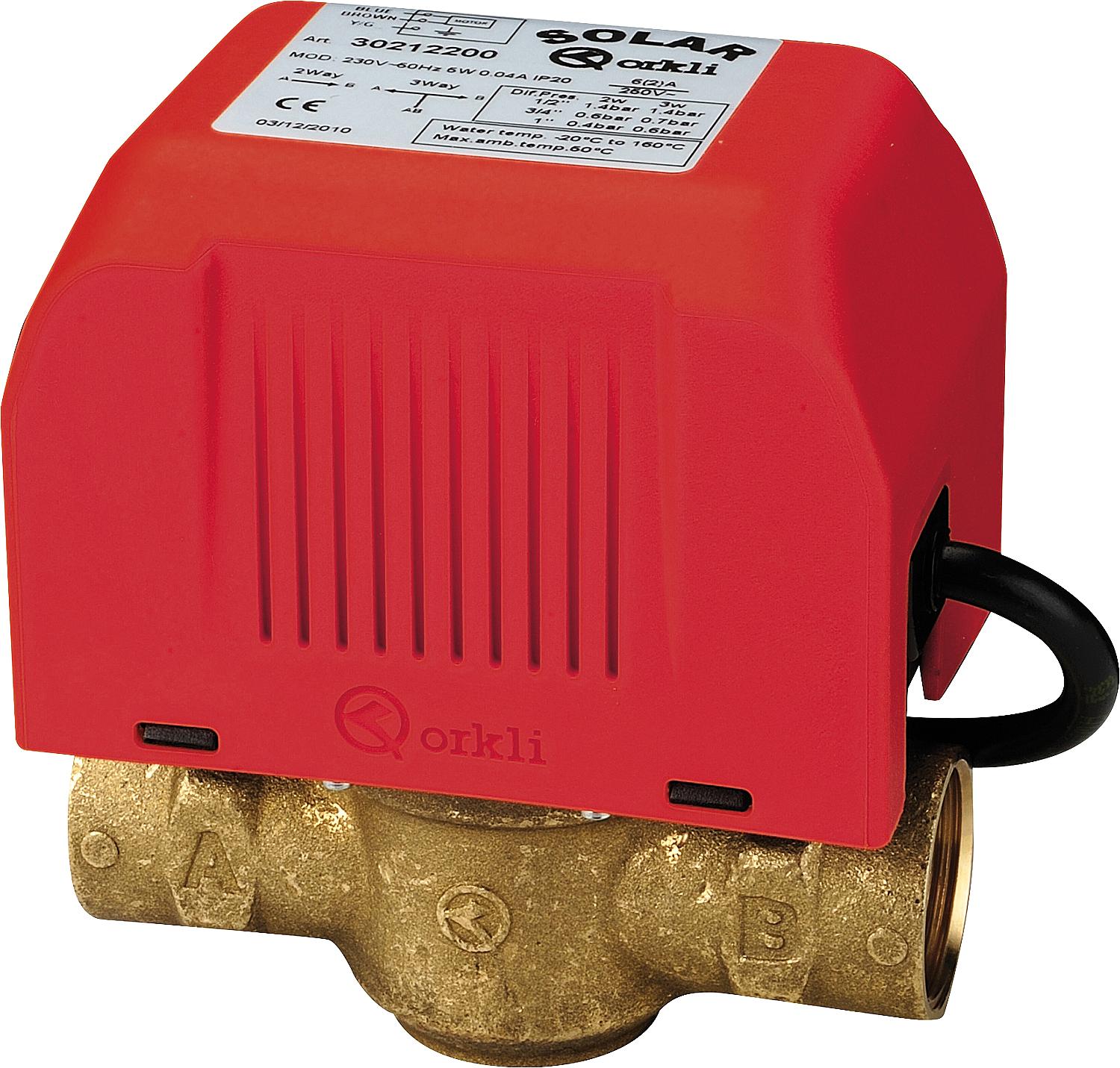

asdec life ® 2-way zone valve Orkli DN15(1/2") IT, with limit switch, 230V

For use in closed heating and solar circuits. Open/close function for shutting off or switching.
Normally closed (2-way), normally AB-B open (3-way).
They can be operated manually via an integrated lever to fill, flush, vent or drain the system.

Technical specifications:

Operating pressure max.: 10 bar
Differential pressure max.:
- DN 15 (1/2) = 1.4 bar
- DN 20 (3/4) = 0.7 bar
- DN 25 (1) = 0.6 bar
Operating temperature: -20 to + 160°C
Operating voltage: 230 V/AC
Power Consumption: 6W
Opening/closing time approx.: <12 sec./6 sec.
Medium: Water with up to 50% glycol content
Valve body material: brass
Paddle material: EPDM
Cable Length: 0.6m

Permitted installation positions:
Motor on top or on the side!
The microswitch with limit switch signal is activated when the valve is energized.
In this way, any desired device can be controlled with this microswitch (e.g. turning on a circulation pump).
