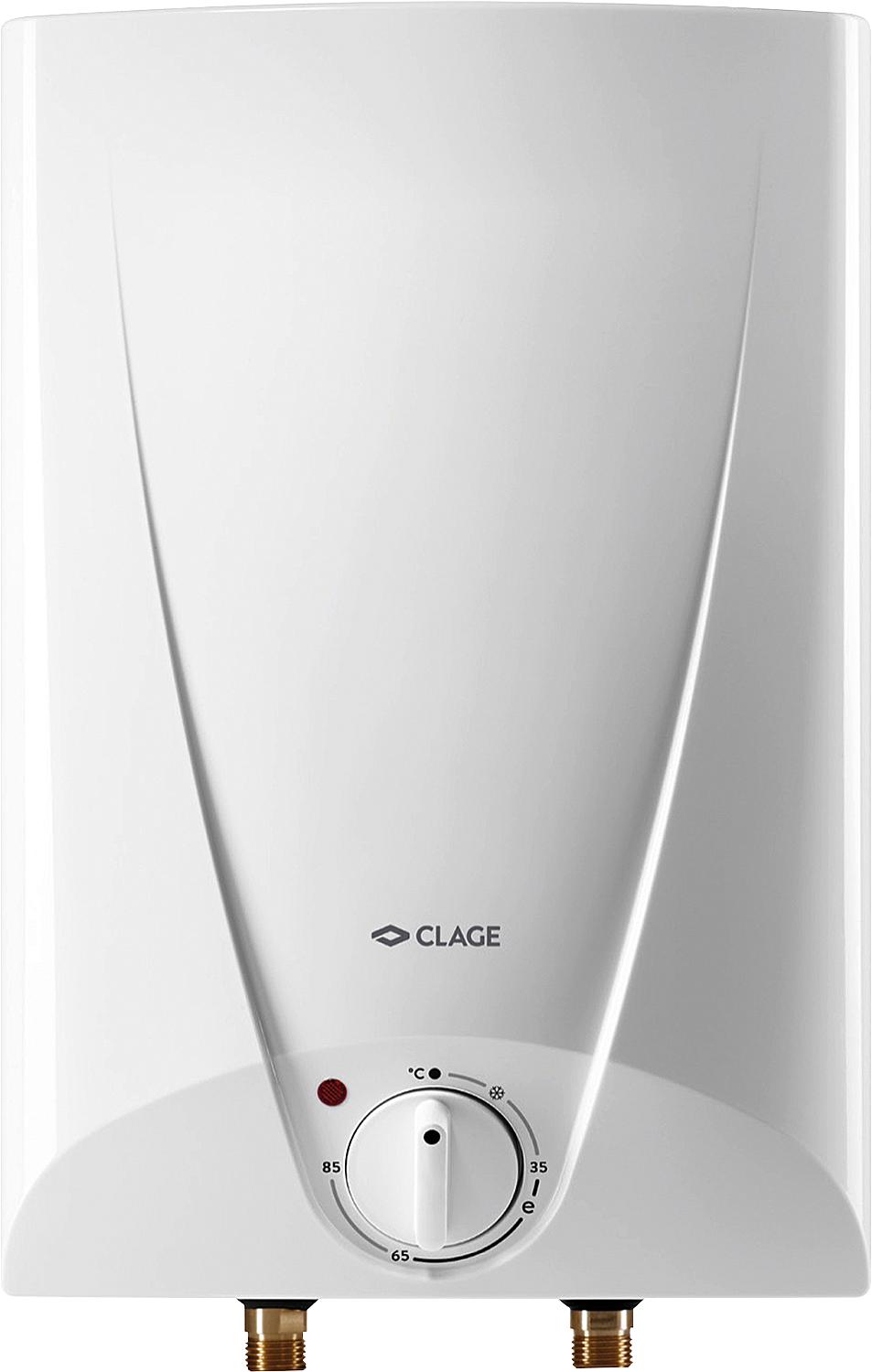

asdec life ® non-pressurized storage tank Clage, 5 liters type S5-O
For one tapping point only
Polypropylene inner container
Temperature setting up to 85°C
STB as dry run protection
antifreeze
Operating display by signal lamp
Area of application:
For smaller amounts of hot water
For kitchen, guest room etc.
connector ready
Model S 5 5 liters lower table 5 liters upper table
Technical specifications
Rated power [KW] 2.0 2.0
Energy efficiency class A A
Water connection (screw connection) DN 10 (3/8") DN 10 (3/8")
Temperature selection range [°C] 35/85 35/85
Approx. quantity of mixed water 40°C at 65 °C [litres] 9.1 9.1
Voltage [V] 230 230
Rated current [A] 9 9
Heat-up time t = 55 K [min] 10 10
Standby power consumption at 65°C [kWh/24 h] 0.27 0.27
Degree of protection IP24 IP24
Technical specifications:
| Rated power [KW] | 2.0 |
|
energy efficiency class |
A |
| Water connection (screw connection) | DN10 (3/8") |
| Temperature selection range [°C] | 35-85 |
|
Approx. quantity of mixed water 40°C at 65 °C [litres] |
9.1 |
| Voltage [ V] | 230 |
| Rated current [ A] | 9 |
|
Heat-up time t = 55 K [min] |
10 |
|
Standby power consumption at 65°C [kWh/24 h] |
0.27 |
| Degree of protection | IP24 |
