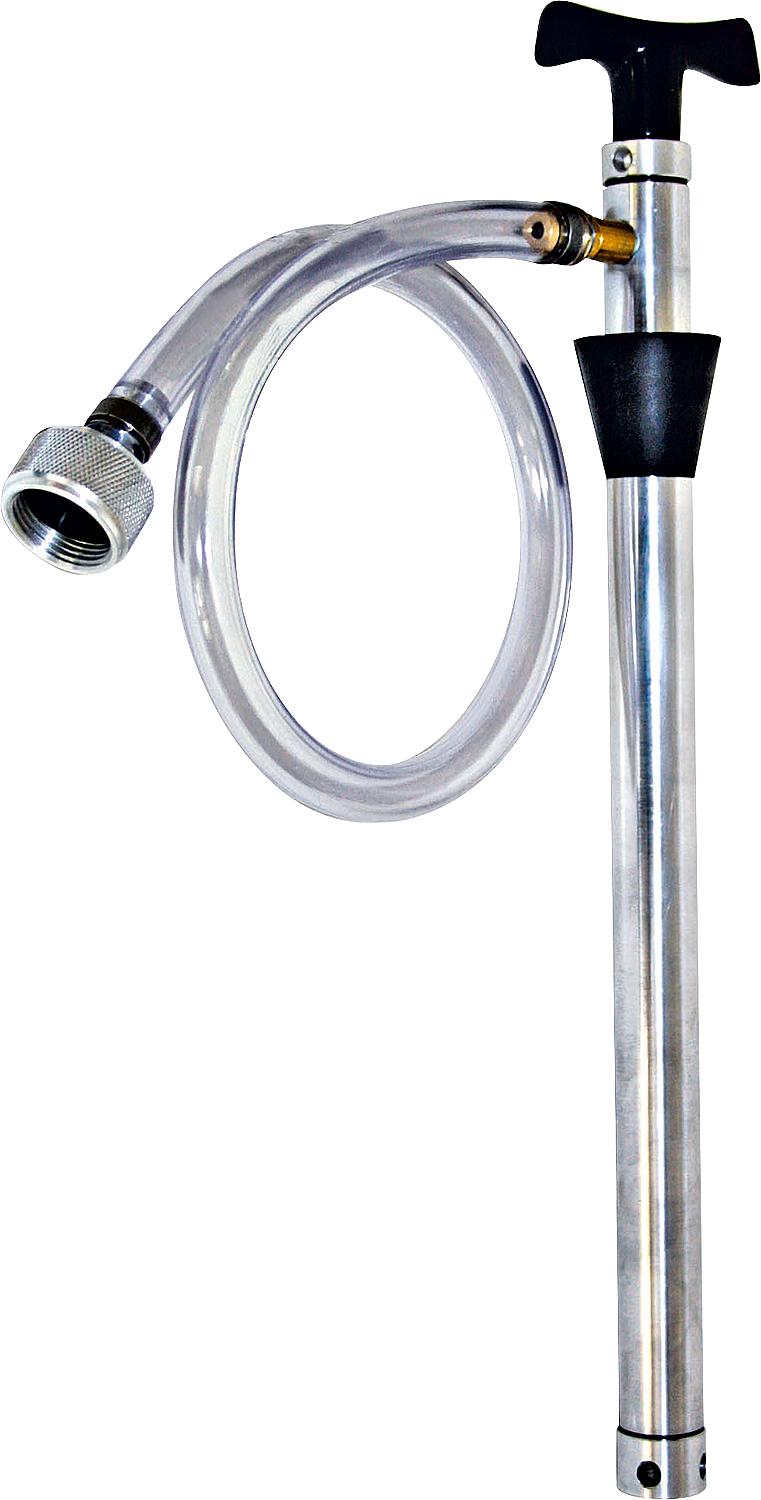

asdec life ® manual filling pump type HAP-21 SOL
Double-stroke pump for filling and decanting, suctioning or dosing of liquids such as: glycol, diesel, oils, coolant, water and water mixtures
Height adjustment: by sliding sealing cone
Technical specifications:
Pump body: ø 25 mm
Length: 400mm
Lifting height: approx. 270 mm
Stroke volume: approx. 90 ml/stroke
Pump: aluminum
Suction connection: 1/4"
Pressure: up to approx. 30 bar
Pressure connection: 3/4" ÜWM
Weight: about 700g
Scope of delivery:
pump
1 x rubber cone to attach the pump for tank openings with ø 2540 mm
Pressure hose: PVC, 1750 mm long
