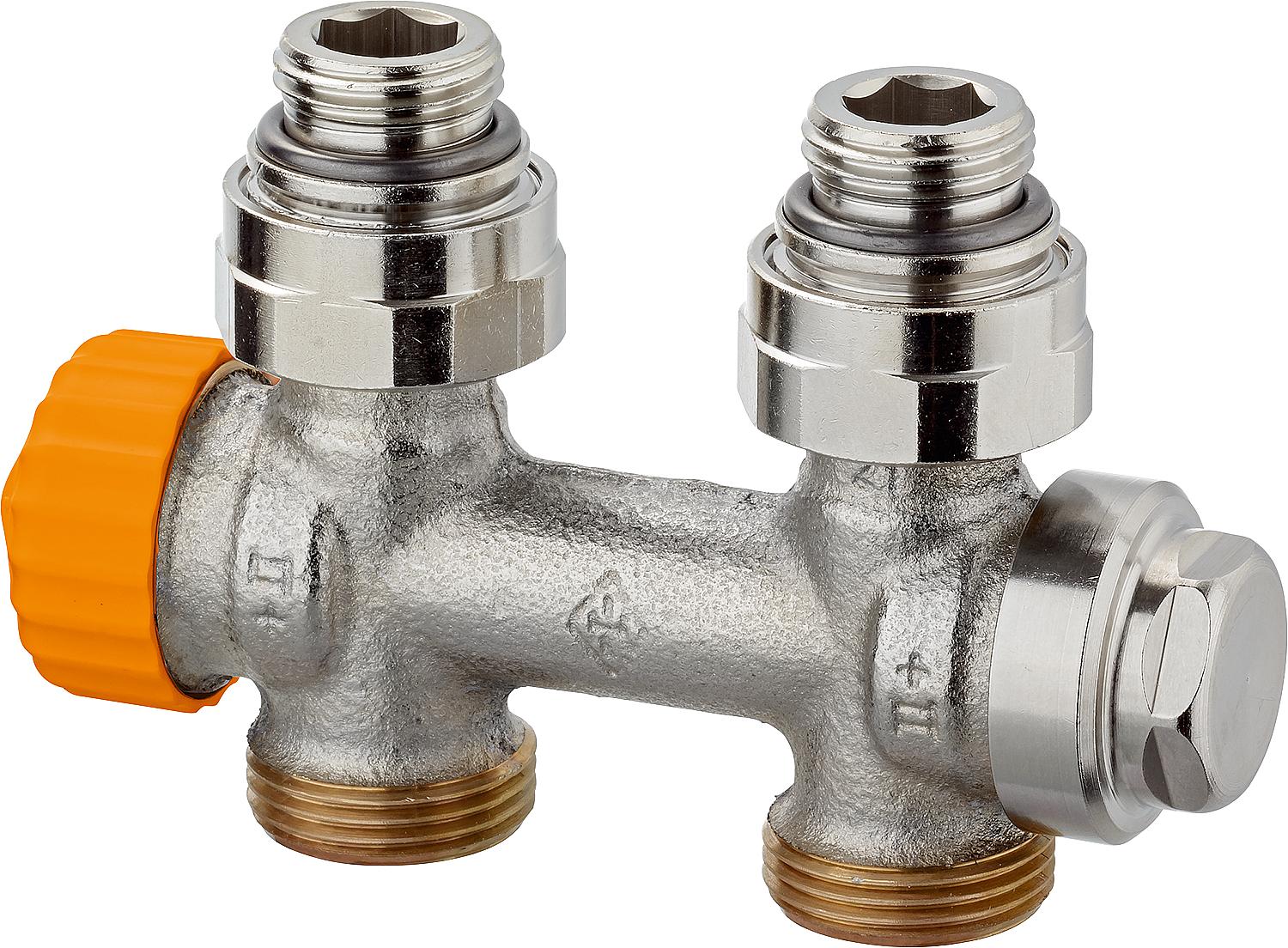

asdec life ® Heimeier Multilux Eclipse two-pipe operation, IG, corner

For installation in two-pipe heating systems on radiators with a two-point connection at the bottom, such as bathroom, design, universal or valve radiators

Automatic hydraulic balancing through integrated flow controller, so the flow in the radiator is never exceeded even if the neighboring valves close
The required flow of the individual radiators is set directly on the thermostatic valve body
The flow can be infinitely adjusted within the flow range using the adjustment key, setting 1-15
The thermostatic upper part and shut-off upper part can be exchanged, making it suitable for installation on the left or right of the radiator
Flow range from 10 to 150 l/h
Connection Th head: M30x1.5
Center distance: 50mm

Technical specifications:

Material valve: gunmetal, corrosion-resistant
Material spindle: stainless steel spindle with double O-ring seal
Material O-ring: EPDM
Maximum operating pressure: 10 bar
Maximum operating temperature: 120 °C
Working temperature with fairing max.: 90°C
Minimum operating temperature: -10°C
Differential pressure max.: 60 kPa
Differential pressure min.:
- 10-100 l/h = 10 kPa
- 100-150 l/h = 10 kPa

Gunmetal nickel-plated
