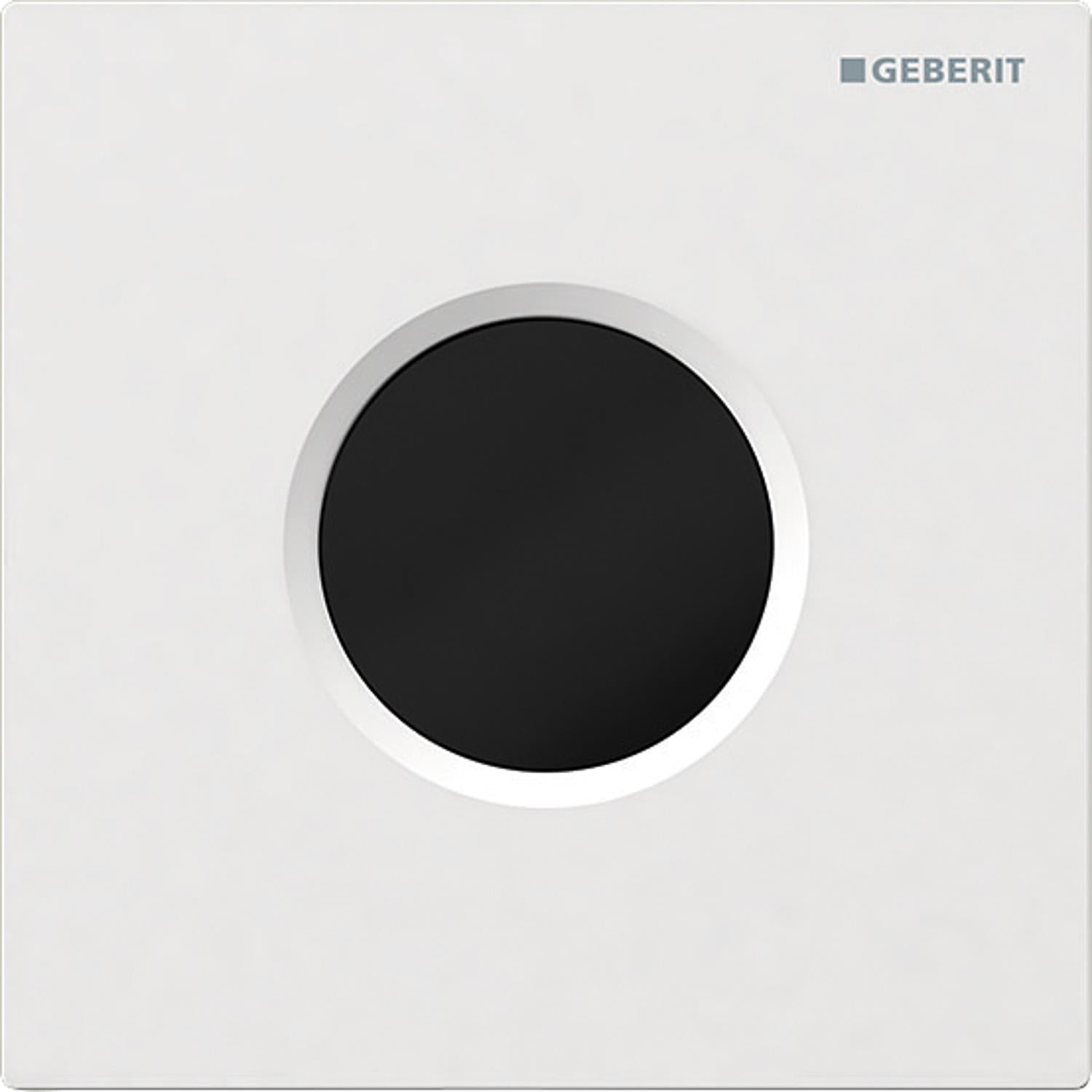

asdec life ® urinal control type 01 electronic actuation mains operation, alpine white

For automatic flush actuation of urinals
For Geberit mounting elements for urinals with front actuation
For installation in Geberit urinal elements (from year of construction 2009)
Infrared distance detection
Flushing time manually adjustable
Additional functions such as interval flushing can be set using the Geberit Service Handy (not included in the scope of delivery).
Colour: white-alpine

Technical specifications:

Degree of protection: IP45
Flushing time setting range: 3-15 s
Flushing time factory setting: 4 s
Calculated flow: 0.3 l/s
Interval flush setting range: 1-168 h
Interval flush Factory setting: 24 h
Interval flush time setting range: 3-180 s
Material cover plate: die-cast zinc
Dimensions (W x H x D): 130 x 130 x 9 mm

Technical data (mains operation):
Rated Voltage: 110-240VAC
Operating Voltage: 4.5VDC

Technical data (battery operation):
Battery Type: Alkaline (1.5V AA)
Working Voltage: 3VDC
Lithium battery life: ~ 2 years
