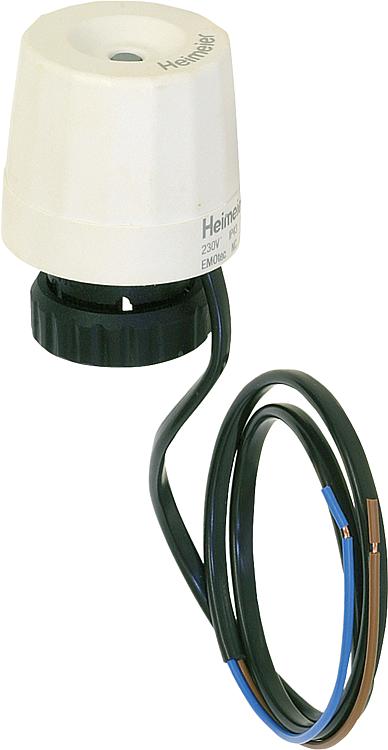

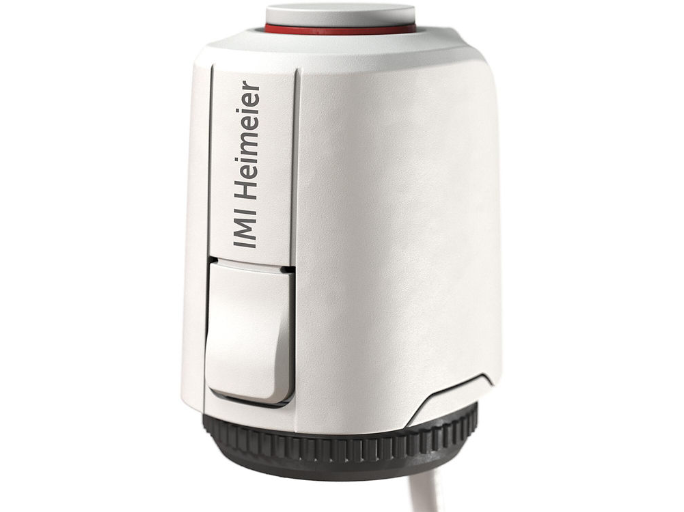

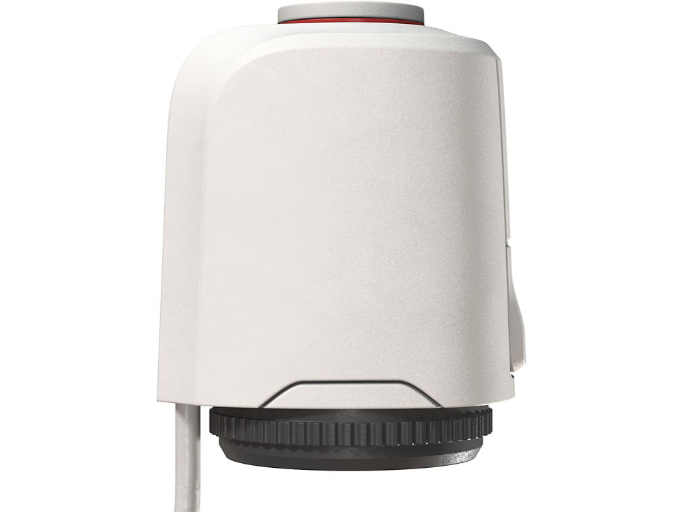

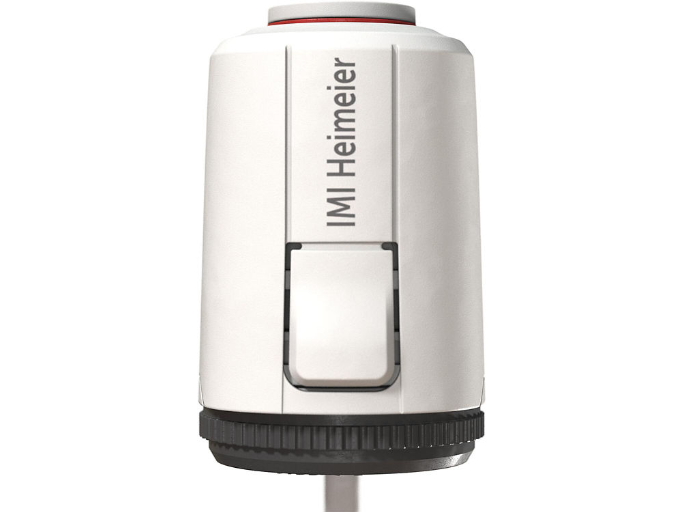

HEIMEIER Thermal actuator EMOtec 230V normally closed (NC) for underfloor heating
Quantity:
Wir akzeptieren:
Choose options
Quantity:
Wir akzeptieren:
Quantity:
Wir akzeptieren:
Product Information:
• For underfloor heating manifolds
• With position indicator at the top
• Normally closed (NC)
• Protection class IP 43
• Power consumption: 3 W (continuous operation)
- Switch-on phase: 90 W (at 230 V), 9 W (at 24 V)
• Closing/opening times: approx. 3 min.
• Ambient temperature: 0°C...50°C
• Medium temperature max.: 100°C
• Connection: M30 x 1.5
• Connection cable: 1 m, 2 x 0.50 mm²

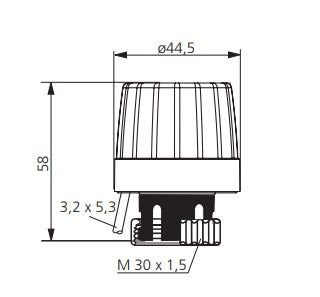

• Dimensions (W x H): 44.5 x 58 mm
• With position indicator at the top
• Normally closed (NC)
• Protection class IP 43
• Power consumption: 3 W (continuous operation)
- Switch-on phase: 90 W (at 230 V), 9 W (at 24 V)
• Closing/opening times: approx. 3 min.
• Ambient temperature: 0°C...50°C
• Medium temperature max.: 100°C
• Connection: M30 x 1.5
• Connection cable: 1 m, 2 x 0.50 mm²
• Dimensions (W x H): 44.5 x 58 mm
Technical data :
| Manufacturer item no.: | H180700 |
| Type: | 230V AC/DC |
| Ref. No.: | 1807-00.500 |
| Power supply: | 230 V AC/DC |
| Brand: | HEIMEIER |
| EAN: | 4024052460359 |
