asdec life ®solar balcony power plants complete set with 390W solar module hanger bolt attachment 15m Schuko plug
Wir akzeptieren:

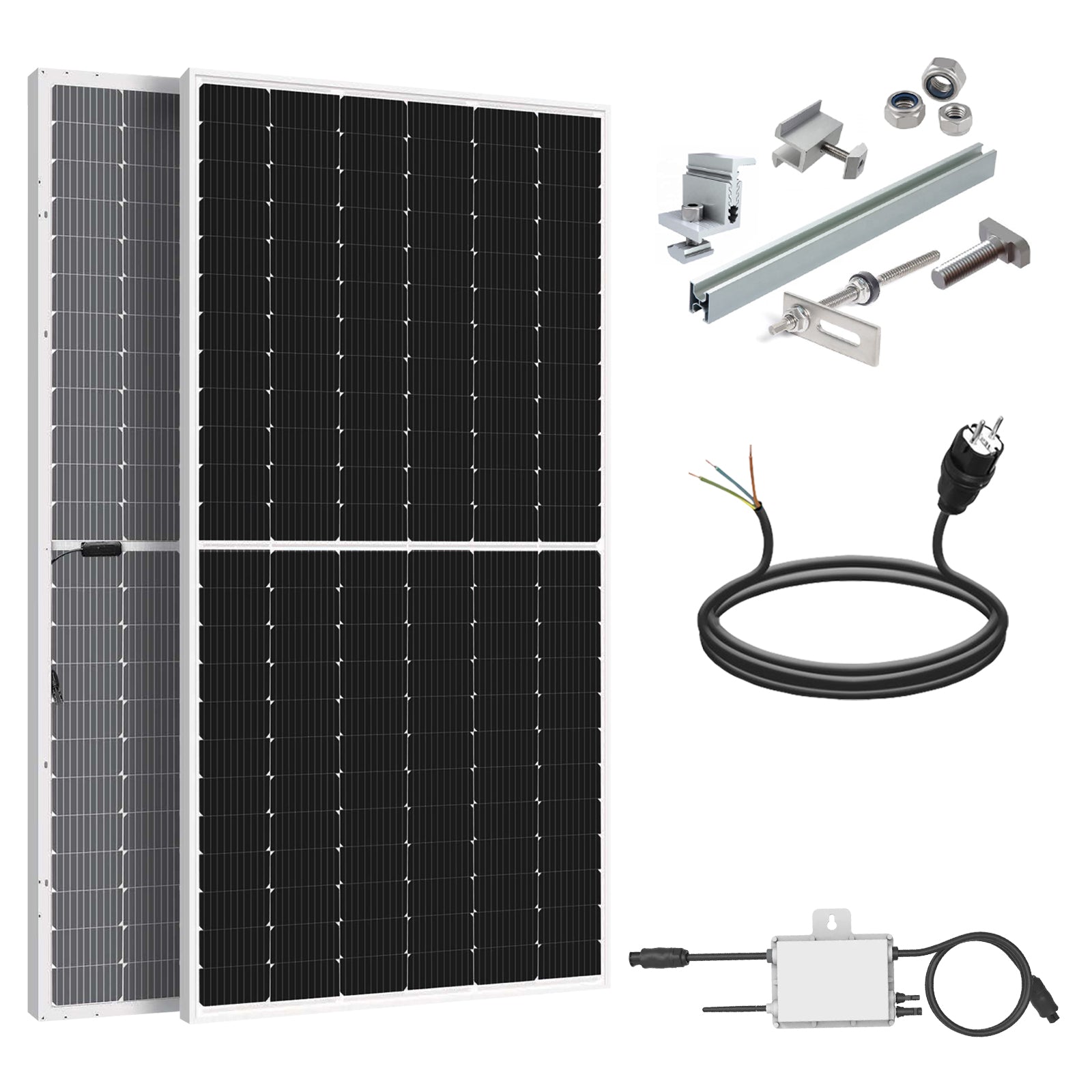

The complete package consists of the following products:
| 1x | 390W Sunpro Monocrystalline M6 HJT Bifacial Solar Panel (EPP-390W-BF) |

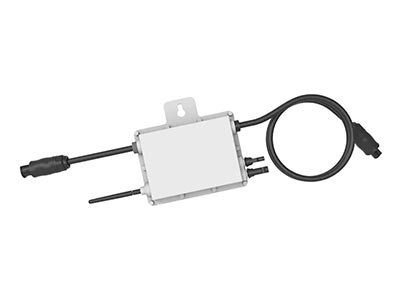

| 1x | EPP 300 / Deye 300 / Hoymiles-300 microinverter (EPP-300) (EPP-DY-300) (HM-300) |

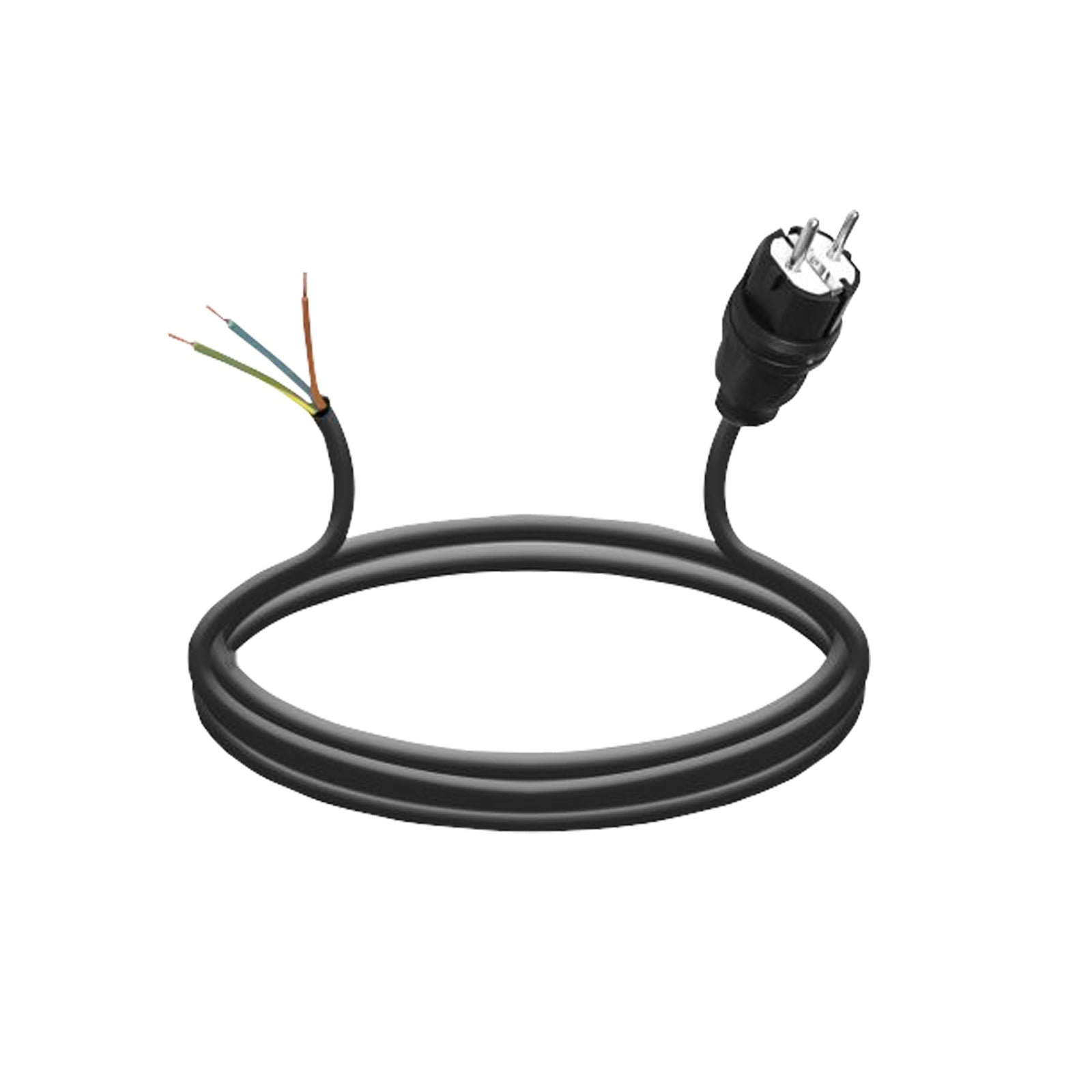

| 1x | 15 meters + Schuko plug- (EPP-KBL-STKR-15) |

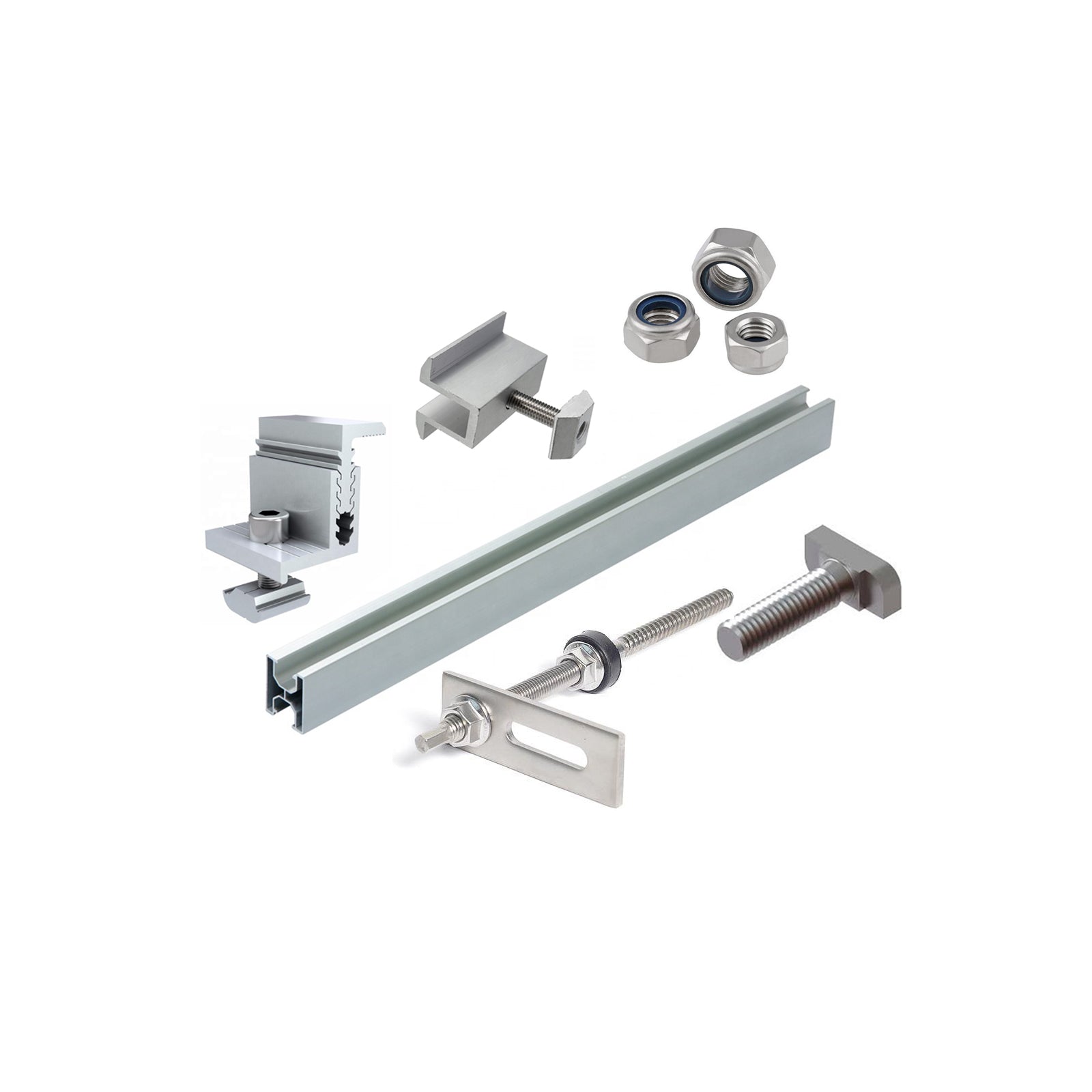

| Assembly package hanger bolts (EPP-MTG-SS) |
Assembly package hanger bolts consists
- 6x hanger bolt
- 6x hammer head screws M10x25 incl. 6 self-locking nuts M10
- 2x hammer head screws M8x25
- 2x locking nut M8
- 2x profile connectors aluminum 4-hole corner
- 4x 1.20 aluminum profile 40×40 light
- 4x end clamps 30-42mm
Technical data solar module:
Number of cells Cell type Connectors Specification 1755x1038x30mm 22.2kgs 120 cells 4mm² symmetrical lengths 200mm MC4 compatible IP68 2.0mm+2.0mm, high transmittance, AR coated heat resistant glass Monocrystalline PERC half cell 12BB
The balcony power plant system is a compact photovoltaic system. It consists of solar modules and a module inverter for feeding into your own electrical house supply network. Ideally, the module inverter is attached directly to the substructure of the solar module on the outside. The module is connected to the module inverter via standard plugs. Then the 230V output cable of the inverter is connected to any house socket. Finished. The difference to a large photovoltaic system, as we know it up to now, is that the electricity produced is not sold to the network operator at a high price, but is fed directly into your own electrical consumer network. This immediately reduces electricity costs, since the self-generated amount of electricity does not have to be purchased from the electricity supplier.
