TECALEMIT®

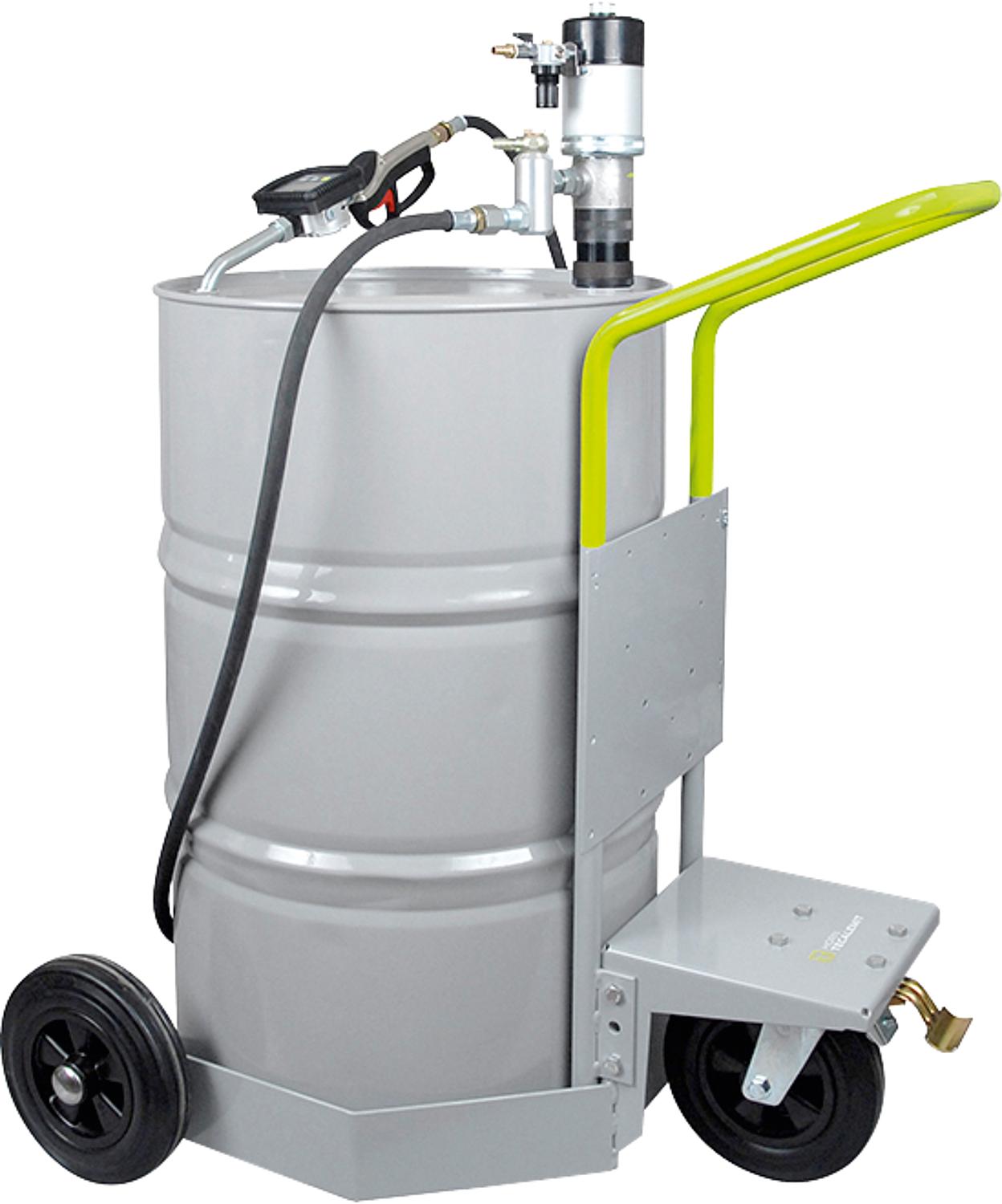

Drum pump set compressed air Drum Mobil 200PP Tecalemit
Wir akzeptieren:
Choose options
Wir akzeptieren:
Wir akzeptieren:
- For lubricant/oil
- Viscosity: medium/high
- Pump type: piston pump
- Air pressure: 4-8 bar
- Delivery pressure: max. 12 bar
- Suitable for continuous operation
- Flow rate: 20 l/min
- Connection oil side suction outlet: 1 1/4 IG-1/2" IG
- Air pressure line inlet: plug nipple DN 7.2
- Suction pipe: 840 mm
- Compression ratio: 4:1
- Tap valve: Manual, 1/2" with counter
- Barrel thread: DN 50 (2") M 64 x 4
- Weight: 33 kg
- Delivery without barrel
- Scope of delivery:
- 1 x nozzle
- 1 x dispensing hose 3.15 m, 1/2"
- 1 x suction pipe
- 1 x transport trolley for barrels up to 200 l
