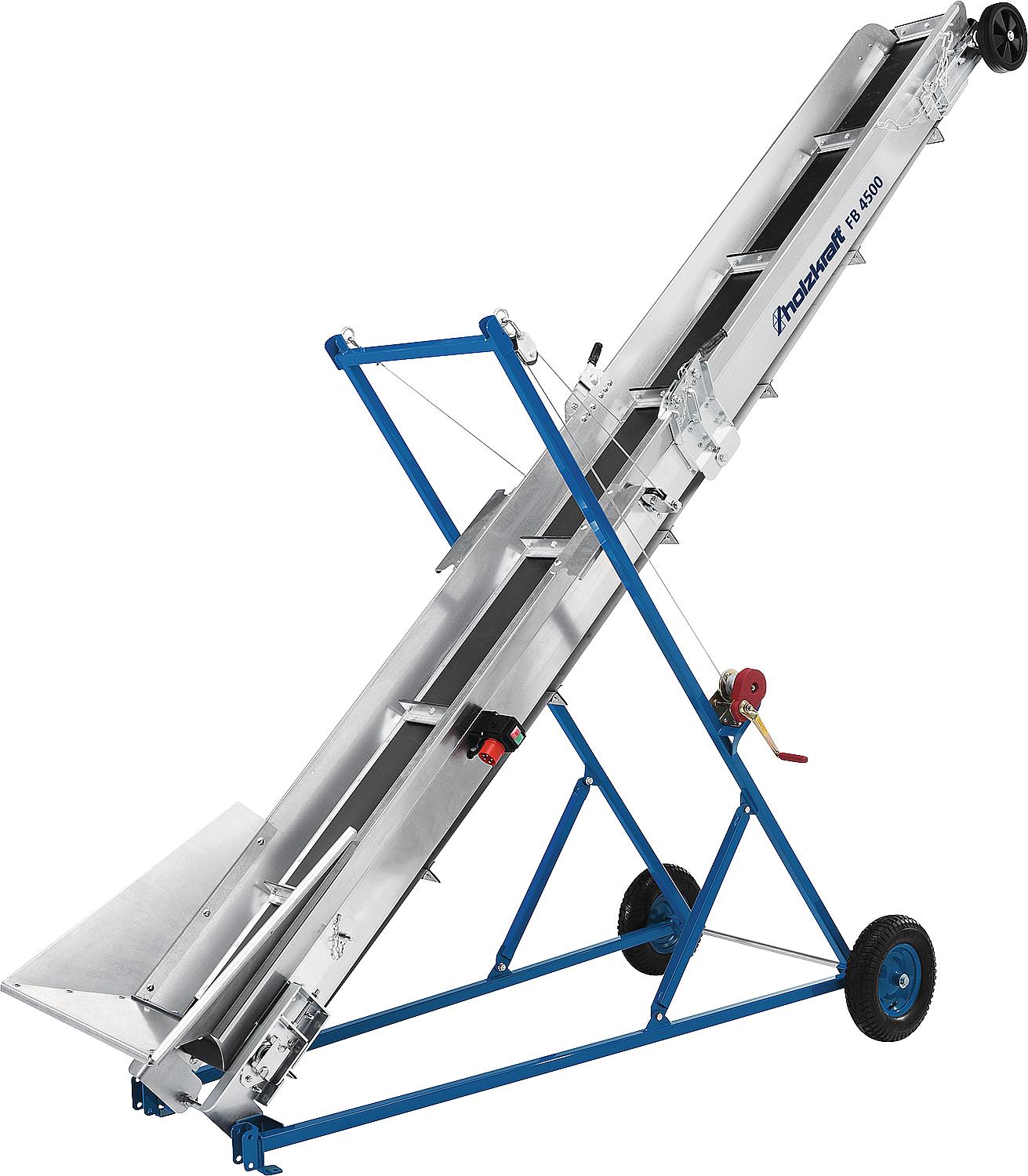

Conveyor belt HOLZKRAFT FB 4500 1.1 kW, 400 V
Wir akzeptieren:
Choose options
Wir akzeptieren:
Wir akzeptieren:
- Conveyor length (m): 4.5
- Delivery head (m): continuously adjustable up to 3.50
- Conveyor belt dimensions
- Width (mm): 250
- Conveyor length (mm): 4500
- Speed (m/s): 0.8
- Tilt adjustment (hand winch) 5 - 45 °
- Delivery head (mm) at 5° = 700, at 45° = 3400
- Dimensions (mm) in working position
- Length (mm) at 5° 4800
- Length (mm) at 45° 3700
- Width (mm) at 5°/45° 1100
- Height (mm) at 5° 2130
- Height (mm) at 45° 3500
- Engine power (kW): 1.10
- Supply voltage 400 V, 50 Hz
- Dimensions for transport/storage position
- Length (mm) approx.: 2770
- Width (mm) approx.: 1100
- Height (mm) approx.: 2130
- Weight (kg): 245
- Pneumatic transport wheels (ø mm): 400
