ESPA
Espa submersible pump type MXO 30 . with float switch - drainage of rain, septic tanks, cesspools
Wir akzeptieren:
Choose options
Wir akzeptieren:
Wir akzeptieren:

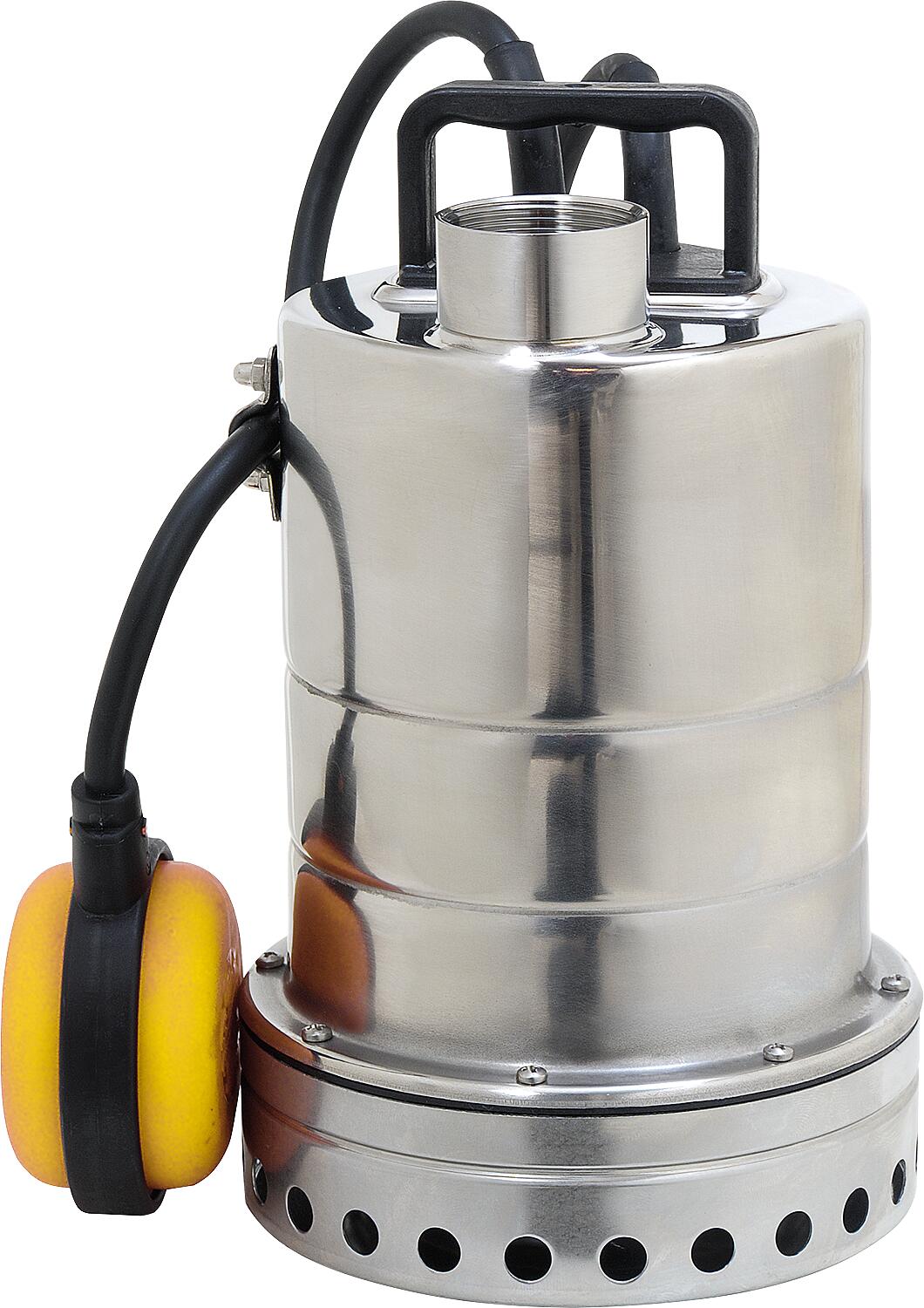

The Espa submersible pump type MXO 30 is the ideal solution for the efficient drainage of rainwater, septic tanks, cesspools and cisterns.
- Robust design: stainless steel housing, technopolymer impeller and stainless steel shaft guarantee longevity.
- Practical float switch: Automates control for maximum user-friendliness.
- High performance: Maximum delivery head of 8.0 m and a flow rate of up to 9000 l/h.
- Variety of applications: Suitable for media with a temperature up to 35 °C, with a maximum grain size of 10.0 mm.
- Efficient: With a rated power of 500 W and a maximum pressure of 0.8 bar, it reliably meets different requirements.
With a 5 m connection cable and a pump diameter of 154 mm, the Espa MXO 30 is both powerful and easy to handle. Ensure your water drains away quickly and efficiently.
Technical data :
|
Core size max. [mm]: |
10 |
|---|---|
|
Pump housing material: |
stainless steel |
|
Maximum flow rate [l/h]: |
9000 |
|
Max. discharge head [m]: |
8 |
|
Motor power consumption (P1) [W]: |
500 |
|
Connection size: |
1 1/4 inch (32) |
|
Connection: |
internal thread |
|
Connection voltage: |
1 x 230 V |
|
Frequency: |
50 Hz |
|
Protection class (IP): |
IP68 |
|
Electrical connection: |
Connection cable with plug |
|
Length of the connecting cable [m]: |
5 |
|
Speed [rpm]: |
2900 |
|
Pump diameter [mm]: |
132 |
|
Suitable for dry installation: |
No |
|
EAN: |
2503035014991 |
|
Type: |
MXO 30 |
|
Brand: |
ESPA |
|
Manufacturer item no.: |
1190400001 |
|
Maximum flow rate [l/h]: |
9000 |
|
Max. pressure [bar]: |
0.8 |
|
Rated power max. [W]: |
500 |
|
Grain size max. [mm]: |
10.0 |
