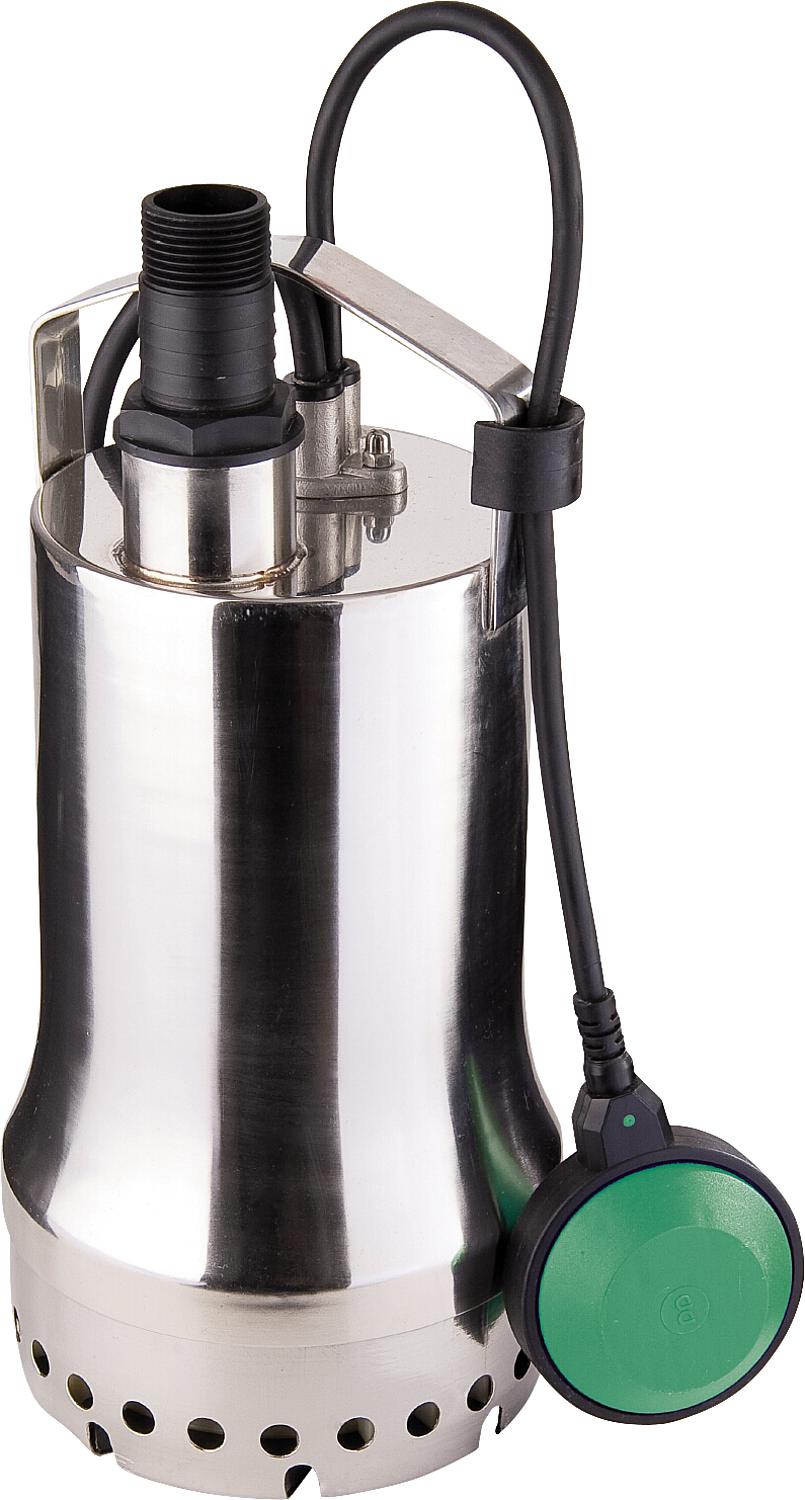

Wilo-Drain Twister TSW 32/8-A basement drainage pump 13000L/h, water-cooled, DN32 (1 1/4")
Quantity:
Wir akzeptieren:
Choose options
Quantity:
Wir akzeptieren:
Quantity:
Wir akzeptieren:
- For drainage, water extraction and pumping
- For clean to slightly contaminated water
- Detachable connection and float cables
- Constantly clean pump shaft thanks to patented, integrated vortex device (TSW)
- Pump housing: stainless steel
- With float switch
- Maximum delivery head: 8 m
- Pressure connection: DN 32 (1 1/4")
- Voltage: 230 V, 50 Hz
- Connection cable: 10 m
- Diving depth max.: 10 m
- Maximum fluid temperature: 35°C
- Weight: 7.8 kg
Technical data :
| Manufacturer item no.: | 6045167 |
| Max. pressure [bar]: | 0.8 |
| Grain size max. [mm]: | 10.0 |
| Rated power max. [W]: | 550 |
| Type: | TSW 32/8-A |
| Maximum flow rate [l/h]: | 13000 |
| Brand: | wilo |
| EAN: | 4044966474150 |
| Motor housing material: | stainless steel |
| Pump housing material: | stainless steel |
| With cutting unit: | - |
| Motor power consumption (P1) [W]: | 550 |
| Motor output power (P2) [W]: | 300 |
| Connection size: | DN32 |
| Connection: | Tapered external thread (NPT) |
| Connection voltage: | 1 x 230 V |
| Frequency: | 50 Hz |
| Rated current [A]: | 2 |
| Protection class (IP): | IP68 |
| Insulation class according to IEC: | B |
| Electrical connection: | Connection cable with plug |
| Pump circuit: | with external float |
| Length of the connecting cable [m]: | 3 |
| Speed [rpm]: | 2,900 |
| Pump diameter [mm]: | 161 |
| Pump height [mm]: | 300 |
| Suitable for dry installation: | - |
